Description

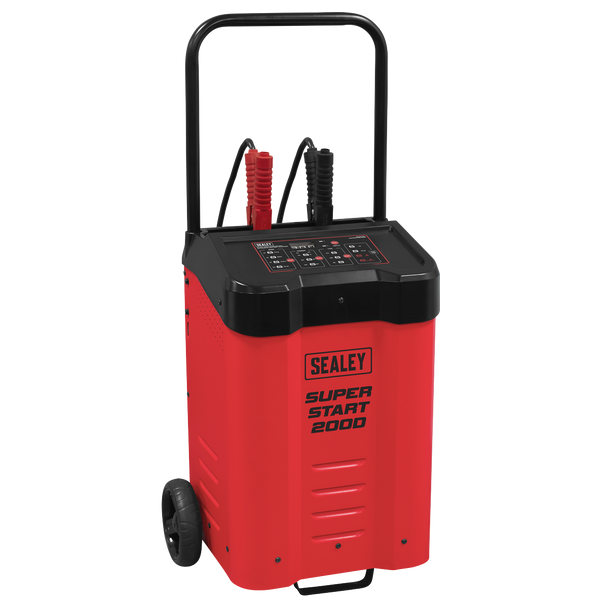

• AUTOMATIC BATTERY CHARGER AND STARTER - Designed for charging, and boosting a variety of AGM (stop/start), GEL, lead acid and Lithium batteries up to 600Ah.
• INTUITIVE - Digital display and 200A peak engine start function, makes this unit ideal for every workshop.
• SAFETY FEATURES - Overcharge, short circuit, and reverse polarity protection.
• DEDICATED CHARGING PROGRAMMES - Suitable for AGM, GEL, conventional Lead Acid and lithium batteries with fully automated charging algorithms.
• MULTIPLE CHARGING PROGRAMMES – Three charging rates for both 12V and 24V systems.
• PORTABLE DESIGN – Portable design with handle means you can easily manoeuvre the unit around the workshop.
• INTUITIVE - Digital display and 200A peak engine start function, makes this unit ideal for every workshop.
• SAFETY FEATURES - Overcharge, short circuit, and reverse polarity protection.
• DEDICATED CHARGING PROGRAMMES - Suitable for AGM, GEL, conventional Lead Acid and lithium batteries with fully automated charging algorithms.
• MULTIPLE CHARGING PROGRAMMES – Three charging rates for both 12V and 24V systems.
• PORTABLE DESIGN – Portable design with handle means you can easily manoeuvre the unit around the workshop.
Spare Parts
Specification & Documents
Specification
| Output: | 12/24V |
| Zero Voltage Charging: | No |
| Battery Support/DC Supply Mode: | No |
| Supply Current: | 13A |
| Supply Voltage: | 230V ~ 50Hz 13A (Max) |
| Plug Type: | 3-Pin |
| Power Supply Cable Length: | 1.9m |
| Cable & Clamp Length: | 2m |
| Charger Type: Traditional (T) or Intelligent (HF): | HF |
| Battery Range: | 10Ah - 600Ah |
| Max. Size Battery (AH) Full Charge in 12hrs from Discharged: | 600Ah |
| Output Charge Peak: | 60A - 12V, 30A - 24V |
| Output Charge Rates: | 12V - 60A, 30A, 10A 24V - 30A, 15A, 5A 12V 10A LiFePo4 |
| Start Peak: | 200A (12V only) (5s on, 180 off) |
| Battery Type: | GEL, AGM, STD, LITHIUM (12V ONLY), LEISURE |
| Working Temp: | (-10°C - 40°C) |
| Housing Protection: | IP20 |
| Max Charging Volts 12V (24V) Lead Acid Batteries: | AGM, 14.7V (29.4V), GEL, 14.1V (28.2V), STD, 14.4V (28.8V) |
| Max Charging Volts 12V LifeP04: | 14.5V |
| Nett Weight: | 16kg |
Cable & Clamp Length: |
2m |
Nett Weight: |
16kg |
Barcode: |
5054630399190 |
Instructions: |
|
Parts Diagram: |
|
Declaration of Conformity: |
