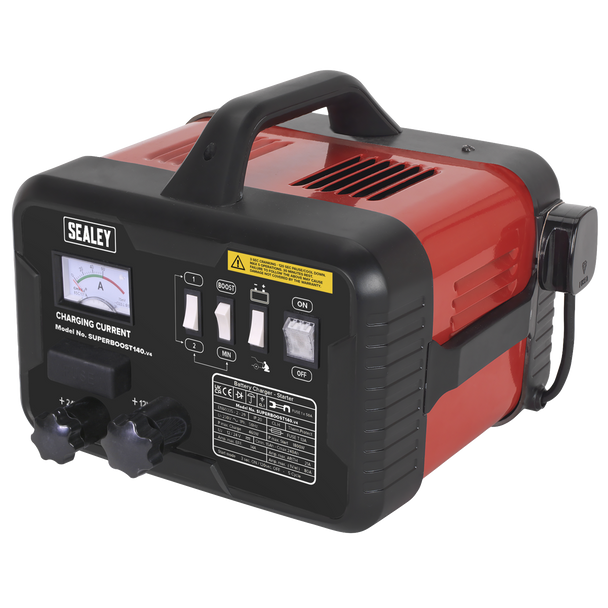

Description
• Max. Charge: 21A(14A EN).
• Max. Start: 140A(110A EN).
• 12/24V Output.
• Battery Range: 15-240Ah.
• Combination units capable of both charging batteries and providing boost power to help start vehicles with flat batteries.
• Models feature easy-to-read ammeters and illuminated power switches.
• Circuitry is protected by a panel mounted fuse.
• Suitable for fleet operators running cars and van derivatives.
• Built-in polarity protection.
• Max. Start: 140A(110A EN).
• 12/24V Output.
• Battery Range: 15-240Ah.
• Combination units capable of both charging batteries and providing boost power to help start vehicles with flat batteries.
• Models feature easy-to-read ammeters and illuminated power switches.
• Circuitry is protected by a panel mounted fuse.
• Suitable for fleet operators running cars and van derivatives.
• Built-in polarity protection.
Spare Parts
Specification & Documents
Specification
| Output: | 12/24V |
| Output Charge Peak(EN): | 21A(14A) |
| Output Start Peak(EN): | 140A(110A) |
| Battery Range: | 15-240Ah |
| Input Charge: | 2.7A |
| Input Start: | 11A |
| Charging Rates: | 3 |
| Supply: | 230V |
| Polarity Protection: | Fuse (1x50A) |
| Fuse: | 120/802309 (Pack of 20) |
Cable & Clamp Length: |
2m |
Nett Weight: |
7kg |
Barcode: |
5024209213776 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
