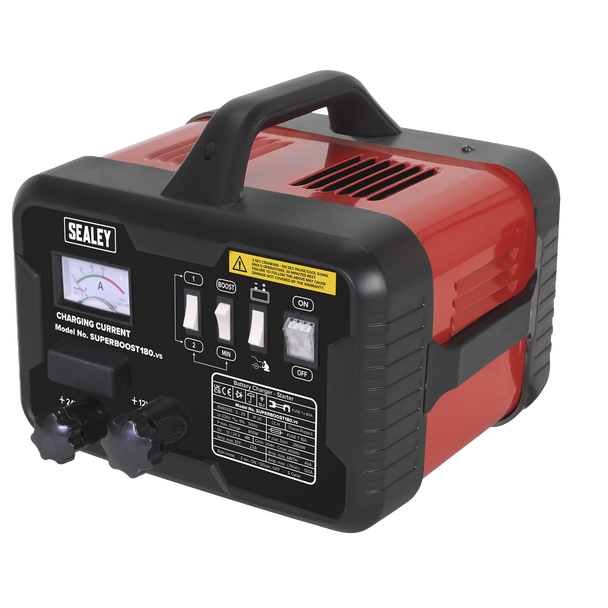

Description
• Max. Charge: 40A(25A EN).
• Max. Start: 180A(160A EN).
• 12/24V Output.
• Battery Range: 20-400Ah.
• Combination unit capable of both charging batteries and providing boost power to help start vehicles with flat batteries.
• Models feature easy-to-read ammeters and illuminated power switches.
• Circuitry is protected by a panel mounted fuse.
• Suitable for heavier garage use for engines up to 3L capacity.
• Built-in polarity protection.
• Max. Start: 180A(160A EN).
• 12/24V Output.
• Battery Range: 20-400Ah.
• Combination unit capable of both charging batteries and providing boost power to help start vehicles with flat batteries.
• Models feature easy-to-read ammeters and illuminated power switches.
• Circuitry is protected by a panel mounted fuse.
• Suitable for heavier garage use for engines up to 3L capacity.
• Built-in polarity protection.
Spare Parts
Specification & Documents
Specification
| Output: | 12/24V |
| Output Charge Peak(EN): | 40A(25A) |
| Output Start Peak(EN): | 180A(160A) |
| Battery Range: | 20-400Ah |
| Input Charge: | 4.5A |
| Input Start: | 15.5A |
| Charging Rates: | 3 |
| Supply: | 230V- 16A Supply |
| Polarity Protection: | Fuse (1 x 80A) |
| Fuse: | 120/802260 (Pack of 20) 120/122351 (Single) |
Cable & Clamp Length: |
2m |
Nett Weight: |
9.00kg |
Barcode: |
5024209213790 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
