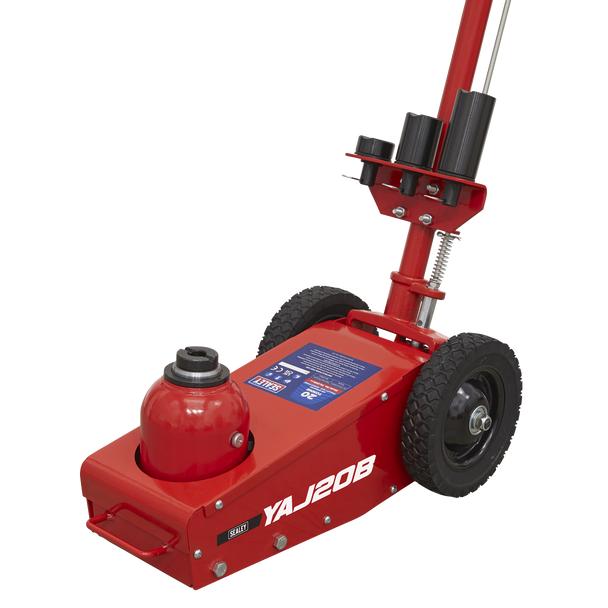

Description
• Powerful and reliable, ideal for workshop or roadside use.
• At modest cost, it takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• Features dead man’s controls and multi-position locking handle.
• Supplied with 20/60/100mm extensions to close the gap between the saddle of the jack and the jacking point.
• At modest cost, it takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• Features dead man’s controls and multi-position locking handle.
• Supplied with 20/60/100mm extensions to close the gap between the saddle of the jack and the jacking point.
Spare Parts
Specification & Documents
Specification
Air Consumption: |
9.5cfm |
Capacity: |
20 Tonne |
Chassis Length: |
610mm |
Extensions: |
20/60/100mm |
Maximum Length: |
1270mm (including handle) |
Minimum Saddle Height: |
223mm |
Overall Width: |
320mm |
Piston Stroke: |
119mm |
Screw Extension: |
88mm |
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): |
530/20 |
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): |
n/a |
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): |
n/a |
Nett Weight: |
32.5kg |
Width without Wheels: |
187mm |
Working Pressure: |
100-120psi |
Barcode: |
5054511724707 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
