Description

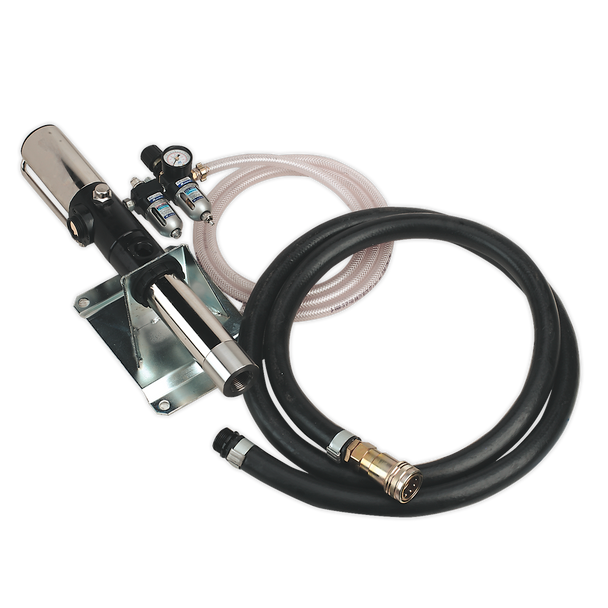

• Air operated 1:1 oil pump, suitable for use with Model No. AK450DX oil drain unit.
• Supplied with a wall mounting bracket, 2m flexible hose with dry-fit male and female quick couplings to attach it to the drain unit.
• 2m Flexible air supply hose with filter, lubricator and regulator assembly is also included.
• The pump can be plumbed into a run of pipework to a waste oil storage point sited out of the workshop.
• Supplied with a wall mounting bracket, 2m flexible hose with dry-fit male and female quick couplings to attach it to the drain unit.
• 2m Flexible air supply hose with filter, lubricator and regulator assembly is also included.
• The pump can be plumbed into a run of pipework to a waste oil storage point sited out of the workshop.
Spare Parts
Specification & Documents
Air Consumption: |
8.8cfm |
Minimum/Maximum Air Pressure: |
30/120psi |
Oil Delivery @ 90psi: |
60L/min |
Nett Weight: |
8.65kg |
Barcode: |
5024209287593 |
Instructions: |
|
Parts Diagram: |
