Description

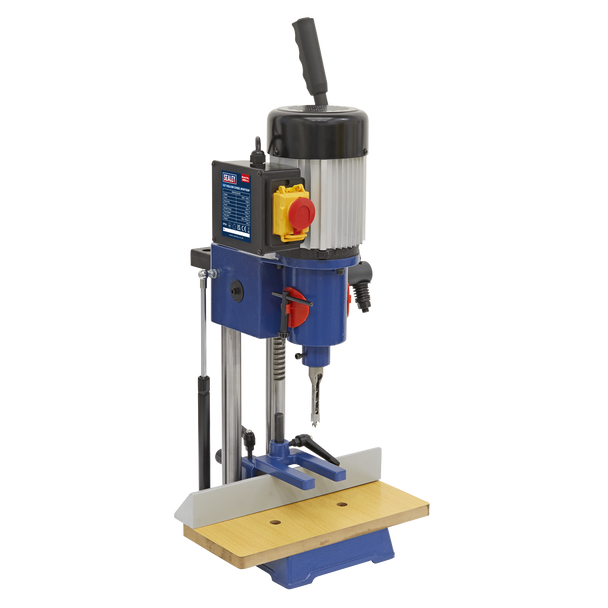

• Bench mounting mortising machine suitable for cutting mortises for joints, locks and dead-bolts.
• Twin uprights with hydraulic damper carry head assembly and have adjustable depth stop for repetitive work.
• Integral 13mm drill chuck is easily accessible from both sides of the head.
• Powered by heavy-duty induction motor with no-volt release switch to prevent accidental restart after power failure or jam.
• Supplied with 3/8" mortising chisel.
• Includes table and workpiece clamp assembly.
• Twin uprights with hydraulic damper carry head assembly and have adjustable depth stop for repetitive work.
• Integral 13mm drill chuck is easily accessible from both sides of the head.
• Powered by heavy-duty induction motor with no-volt release switch to prevent accidental restart after power failure or jam.
• Supplied with 3/8" mortising chisel.
• Includes table and workpiece clamp assembly.
Spare Parts
Specification & Documents
Chisel Capacity: |
6 - 12mm |
Chuck Capacity: |
13mm |
Dimensions (W x D x H): |
340 x 355 x 640mm |
Motor Power: |
370W |
Spindle Speed: |
1400rpm |
Spindle Travel: |
132mm |
Supply: |
230V (AC symbol) 50Hz |
Table Size: |
340 x 150mm |
Throat Depth: |
76mm |
Nett Weight: |
27kg |
Barcode: |
5054630106866 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
