Description

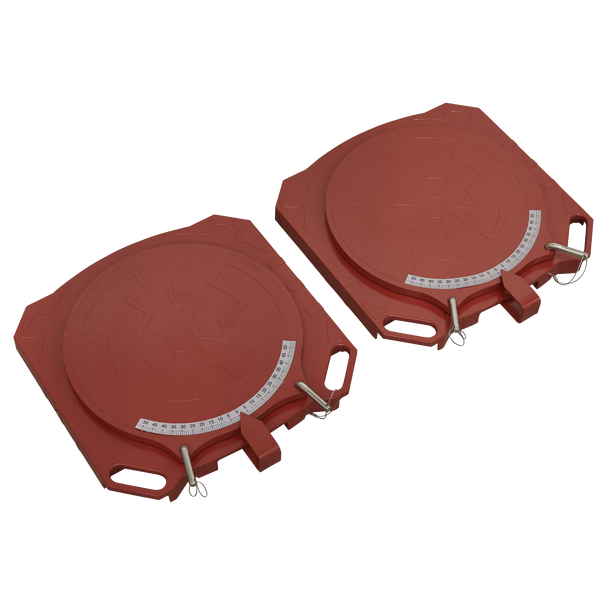

• Use in conjunction with Caster Kingpin Gauge Sets for accurate castor and kingpin alignment.
• Also measures steering angles.
• Locking pins prevent rotation of table whilst driving vehicle on and ensure accurate angular measurements.
• Measures up to 55º rotation in either direction.
• Maximum loading 4000kg per pair.
• Also measures steering angles.
• Locking pins prevent rotation of table whilst driving vehicle on and ensure accurate angular measurements.
• Measures up to 55º rotation in either direction.
• Maximum loading 4000kg per pair.
Spare Parts
Specification & Documents
Capacity: |
4 Tonne pair, 2 Tonne each |
Range: |
±55° |
Table Diameter: |
Ø400mm |
Table Height: |
50mm |
Table Movement: |
62mm Front-to-back, 55mm Side-to-side |
Nett Weight: |
11kg |
Barcode: |
5054511854930 |
Parts Diagram: |
|
Instructions: |
