Description
• For cutting wood, board, plastic and steel.
• Comfortable housing with soft grip.
• Toolless blade change system.
• Variable speed control trigger switch 0-2400spm.
• Features dust blow, extraction function and parallel guide.
• Built-in LED worklight.
• Four pendulum settings.
• 2-Stage operation switch for added safety.

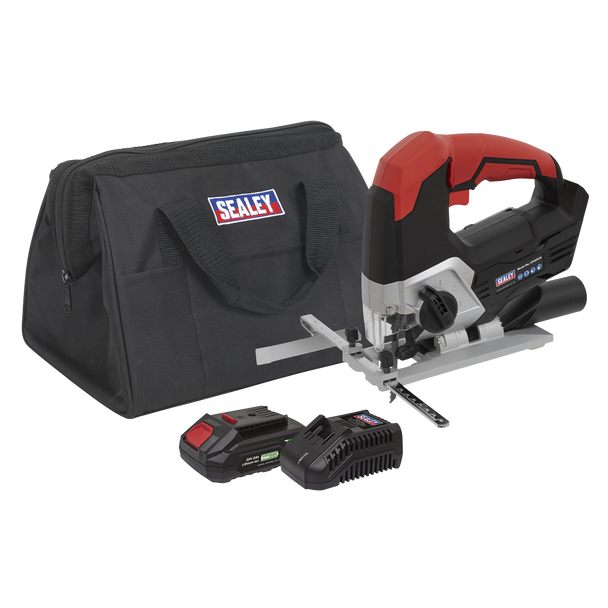

• Supplied with hex key, wood cutting blade, mains charger, 2Ah battery and a canvas bag. Package includes:
• Model No. - Description
• CP20VJS - SV20 Series Cordless Jigsaw 20V
• CP20VBP2 - SV20 Series Power Tool Battery 20V 2Ah
• CP20VMC - SV20 Series Fast Charge Battery Charger 20V
• CP1200CB - Canvas Tool Storage Bag
• You may also refer to the individual Model No. for full specification.
Spare Parts
Specification & Documents
Wood: | 80mm |
Plastic: | 12mm |
Steel: | 10mm |
Metal Pipe: | Ø5-25mm |
Replacement Parts: |
CP20VMC - Mains Charger |
Stroke Length: |
25mm |
Vibration/Uncertainty: |
11.18/1.5m/s² |
Noise Power/Pressure: |
90/79db(A) |
No-Load Speed: |
0-2400spm |
Consumable Parts: |
CP20VBP2 - 2Ah Battery, CP20VBP - 3Ah Battery, CP20VBP4 - 4Ah Battery, CP20VBP6 - 6Ah Battery |
Battery: |
20V 2Ah Li-ion |
Barcode: |
5054630000607 |
Declaration of Conformity: |
|
Safety Data Sheet: |
